sdl_ext.cc File Reference

#include "global.hh"
#include "sdl_ext.hh"

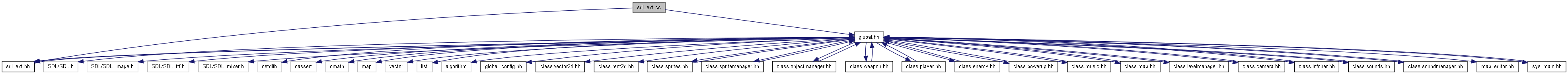

Include dependency graph for sdl_ext.cc:


Functions
void	Slock (SDL_Surface *screen)
	Locks a surface.
void	Sulock (SDL_Surface *screen)
	Unlocks a surface.
SDL_Surface *	Image_Load (const char *filename, bool bOptimize)
	Loads an image and optionally optimizes the loaded surface.
SDL_Surface *	Surface_Optimize (SDL_Surface *pSurface)
	Optimizes a surface for faster blitting.
Uint32	GetPixel (SDL_Surface *screen, int x, int y)
	Retrieve pixel data from a surface.
void	DrawPixel (SDL_Surface *screen, int x, int y, Uint8 r, Uint8 g, Uint8 b)
	Draw a pixel on a surface.
void	DrawCircle (SDL_Surface *screen, int radius, int x, int y, Uint8 r, Uint8 g, Uint8 b)
	Draw a circle on a surface.
void	DrawRect (SDL_Surface screen, SDL_Rect rect, Uint8 r, Uint8 g, Uint8 b)
	Draw a rectangle on a surface.
void	DrawLine (SDL_Surface screen, SDLEXT_Coord coord1, SDLEXT_Coord *coord2, Uint8 r, Uint8 g, Uint8 b)
	Draw a line on a surface.
void	DrawIMG (SDL_Surface screen, SDL_Surface img, int x, int y, int flags)
	Draw an image on a surface.

Function Documentation

void DrawCircle	(	SDL_Surface *	screen,
		int	radius,
		int	x,
		int	y,
		Uint8	r,
		Uint8	g,
		Uint8	b
	)

Draw a circle on a surface.

void DrawIMG	(	SDL_Surface *	screen,
		SDL_Surface *	img,
		int	x,
		int	y,
		int	flags
	)

Draw an image on a surface.

void DrawLine	(	SDL_Surface *	screen,
		SDLEXT_Coord *	coord1,
		SDLEXT_Coord *	coord2,
		Uint8	r,
		Uint8	g,
		Uint8	b
	)

Draw a line on a surface.

Parameters:

screen	The target surface to draw the line on.
coord1	Coordinate one (from).
coord2	Coordinate two (to).

void DrawPixel	(	SDL_Surface *	screen,
		int	x,
		int	y,
		Uint8	r,
		Uint8	g,
		Uint8	b
	)

Draw a pixel on a surface.

void DrawRect	(	SDL_Surface *	screen,
		SDL_Rect *	rect,
		Uint8	r,
		Uint8	g,
		Uint8	b
	)

Draw a rectangle on a surface.

Uint32 GetPixel	(	SDL_Surface *	screen,
		int	x,
		int	y
	)

Retrieve pixel data from a surface.

SDL_Surface* Image_Load	(	const char *	filename,
		bool	bOptimize
	)

Loads an image and optionally optimizes the loaded surface.

void Slock ( SDL_Surface * screen )

Locks a surface.

void Sulock ( SDL_Surface * screen )

Unlocks a surface.

SDL_Surface* Surface_Optimize ( SDL_Surface * pSurface )

Optimizes a surface for faster blitting.

Remarks:: Returns a surface in case of success. Returns 0 in case of failure.

After executing this function, the specified surface for 'pSurface' won't be useable anymore (it's freed). Please replace the specified surface immediately with the return value of this function.
